FVR112F3-B-155_刮板輸送鏈
|

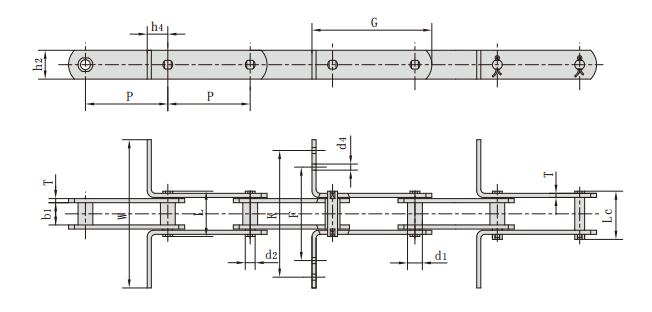

鏈條型號 |
節距 |
套筒直徑 |
內節內寬 |
銷軸直徑 |
銷軸長度 |
抗拉強度 |
平均抗拉強度 |
每米長重 |
|
P |
d1 |
b1 |
d2 |
L |
Lc |
Q |
Q0 |
q |
|
mm |
mm |
mm |
mm |
mm |
mm |
kN/Ibf |
kN |
kg/m |
|
FVR112F3-B-155 |
155.0 |
22.0 |
65.00 |
16.00 |
109.0 |
- |
120.0/26977 |
132.0 |
7.13 |
|
鏈條型號 |
G |
F |
W |
K |
h4 |
h2 |
d4 |
T |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
FVR112F3-B-155 |
207.5 |
- |
250.0 |
- |
30.00 |
40.0 |
- |
6.0 |
